Cylinder kit Athena Evolution 70cc 12mm View larger

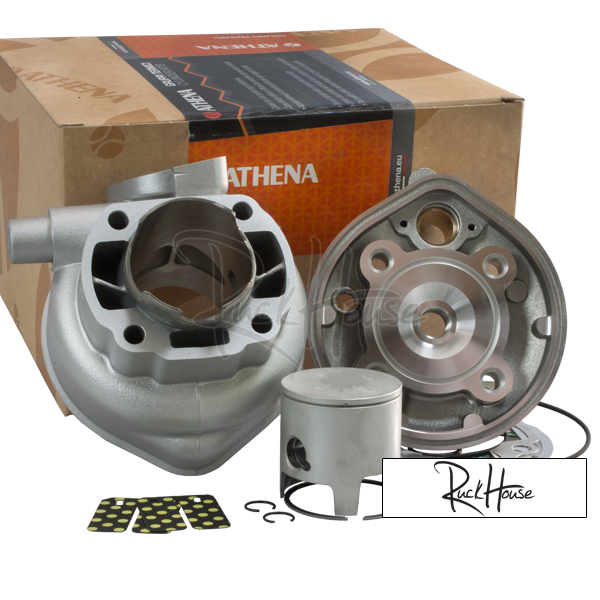

Cylinder kit Athena Evolution 70cc 12mm Minarelli Horizontal LC

081100/1

New product

Athena

High performance Mid-race 70cc aluminum cylinder kit made in Italy by Athena. With the thermal advantages of aluminum provides these cylinders with better cooling and a higher peak power than cast-iron cylinder. Performance between 16-19 hp can be reached. Developed with 3D Solid Modelling software creating virtual simulation and verification of mechanical stresses. This aluminium cylinder is casted in steel moulds and manufactured by CNC machines to assure millesimal tolerances during all manufacturing phases. The cylinder liner is made with a special silicon carbide and nickel coating mixture to grant the best fluidity of the piston and durability of the cylinder. Manufacturing performed in rooms with indoor temperatures of around 20 degrees, in order to have an excellent control of the boring and of each cylinder quality. Cylinder support surfaces are perfectly parallels in order to eliminate any matching inaccuracy. 19-21mm carburetor and racing exhaust like Athena Evolution, Yasuni Carrera16, Stage6 R1200 or Polini for race 4 are suggested to reach the maximum power. We strongly recommend racing crankshaft with this cylinder kit. Supplied with piston and ring, cylinder head, carbon reeds and gasket set with various base gaskets to adjust the squish.

In stock

CAD$ 359.99

Data sheet

Engine Type Minarelli Horizontal
Piston Pin 12mm
Stroke 39.2mm
Displacement 70cc
Conrod Length 80mm
Bore 47.6mm

Accessories

  • Spark plug BR9ES

    Reference: BR9ES-3194

    Brand: NGK

    Spark plug BR9ES (Solid Tip)

    The thermal grade of the spark-plug is of prime importance with tuning kits; if the wrong grade is used the kit will overheat or the spark-plug will foul. A hotter spark plug transfers more heat to the cyl head, which may lead to piston seizures. The Corsa kit comes with the correct spark-plug, for other kits we recommend the plug listed here. As a rule...

    CAD$ 6.99
    Add to cart More
    In stock
  • Piston Stage6 RACING 70cc MKI

    Reference: 080002

    Brand: Athena

    Piston Athena Evolution 70cc Minarelli / Piaggio

    Replacement piston for the Athena Evolution 70cc cylinder kits. Please choose the required piston pin diameter and piston size.

    CAD$ 99.99
    Add to cart More
    Product available with different options
  • Gasket set Athena Sporting/Evolution 70cc Minarelli Horizontal LC

    Reference: 073703/1

    Brand: Athena

    Gasket set Athena Sporting/Evolution 70cc Minarelli Horizontal LC

    This is the complete gasket set for Athena Sporting / Evolutuin / Modular cylinder kit. Check the picture to see which gaskets are included.

    CAD$ 17.99
    Add to cart More
    In stock
